033-780 “B” Collet Stop

$5.00

  • Stud Size: Universal
SKU: 033-780 Category:

Description

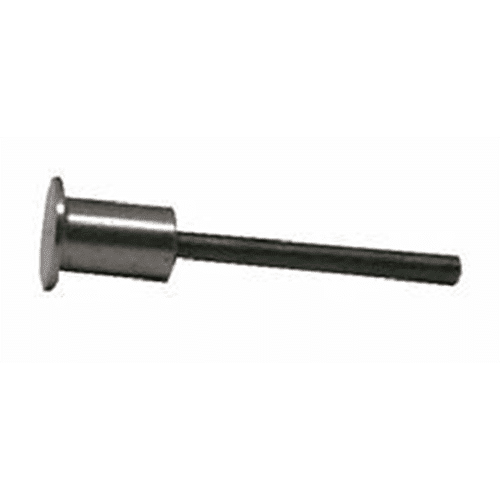

033-780 “B” Collet Stop

Part No. 033-780

“B” Collet Stops keep your studs from slipping through the collet and into the stud gun!

Used in conjunction with “B” collets and the studs themselves. Inserting the “B” stop directly into the collet (which holds the stud in place in the stud gun). It then keeps the stud from slipping through the collet into the stud gun.

The most common type of collet used with domestic manufacturers are the “B” style.

Using “B” Collet Stops

  • First, cut the stop to your desired length (which is dependent on stud length).
  • Then, insert the stop into the collet such that the stud protrudes slightly from the collet itself.

Specifically built for “B” style collets. Used in the process of capacitive discharge stud welding.

Collets and chucks are used in CD stud welding to hold studs securely in the stud gun. Collets function to help transfer spring-loaded pressure into the stud during the welding process.

Collets and chucks ensure a strong bonding process through this mechanism. Through this process, collets and chucks experience wear and eventually must be replaced.

Find our “B” Collets in multiple sizes. They are usable with multiple brands of CD stud welding systems. These collets come in multiple sizes up to 3/8″!
