Description

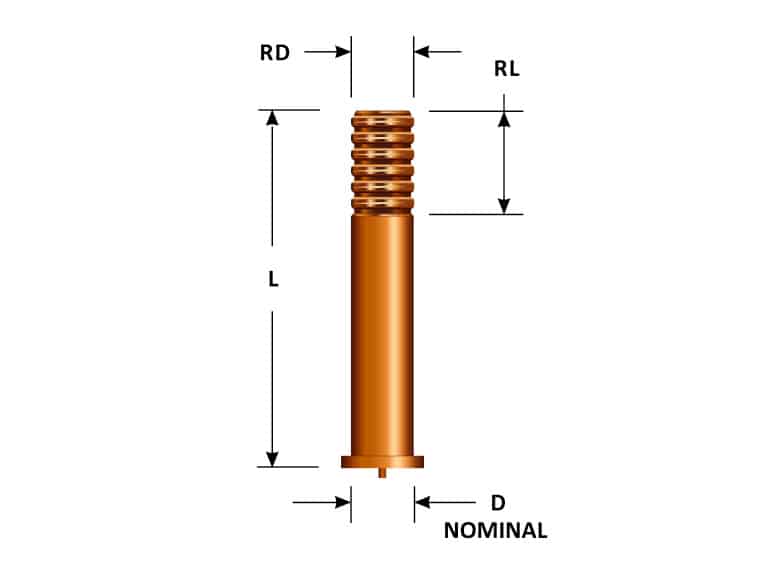

Annular Ring Navy Stud
Annular Ring Navy Studs are available in both low carbon steel and aluminum. All our of Annular Navy Ring Studs conform to military specifications as outlined in MIL-S-24149 covering weld studs for Capacitor Discharge (CD) Welding. Can be secured with navy mushroom cap.

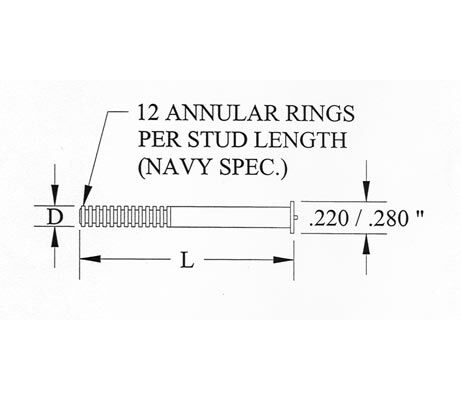

| PART NO. | MATERIAL | "L" | "D" | Wgt/M |
|---|---|---|---|---|
| MSNS-0875 | MILD STEEL | 7/8" | .175/ .180 | 6.4 |
| MSNS-1875 | MILD STEEL | 1 7/8" | .175/ .180 | 12.9 |
| MSNS-2875 | MILD STEEL | 2 7/8" | .175/ .180 | 20.0 |
| ALNS-0875 | ALUMINUM | 7/8" | .175/ .180 | 2.2 |
| ALNS-1875 | ALUMINUM | 1 7/8" | .175/ .180 | 4.7 |
| ALNS-2875 | ALUMINUM | 2 7/8" | .175/ .180 | 7.5 |
Capacitor Discharge (CD) Stud Welding
Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. Small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy. The equipment system instantaneously discharges through a special weld “timing” tip. The entire weld cycle completes in several milliseconds. Welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding can use dissimilar metals.
