Description

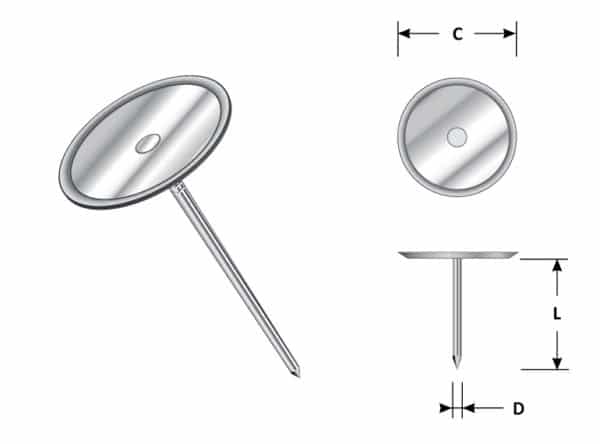

PART NO. | D | C | LENGTH |
---|---|---|---|
CH-12 | .106 | 1-1/2" | AS REQUIRED |
CH-10 | .135 | 1-1/2" | AS REQUIRED |
From $124.20
Cupped Head (CH) Weld Pin is a mild steel fabricated part made up of a weld pin and a stacked on speed clip, or retaining washer. The diameter of the head is 1-1/2″. This product is generally applied with a capacitor discharge (CD) welder. The normal/standard material is galvanized steel (both head and plate). Pins are also available “insulated” for welding through foil-faced materials to prevent arcing on the foil facia. 14ga available, please contact us.
Spec Sheet: Cupped Head Weld Pins
Material: Galvanized Steel, Stainless Steel available on special orders.
*** ALL CUPPED HEAD PINS ARE SOLD 1,000 PIECES***
PART NO. | D | C | LENGTH |
---|---|---|---|
CH-12 | .106 | 1-1/2" | AS REQUIRED |
CH-10 | .135 | 1-1/2" | AS REQUIRED |
