Full Base Studs

Print Full Base PDF

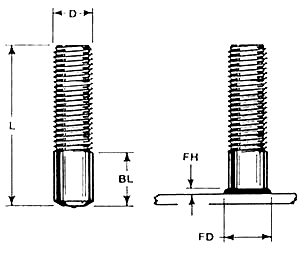

Full Base Studs are used where additional shear strength is required at the weld.

Length: Length is listed before weld. Studs diameters 1/2” and below will be approx. 1/8” shorter after welding. 5/8” will be approx. 3/16” shorter after welding. Stud Welding Products FB Studs can be made in any length above the standard minimum.

Material: Low carbon steel, ASTM A29, 1010 1020. Stainless Steel 18-8

Qty Part # Show/Hide All Details
Get a Quote Diameter: 1-8
Length: 1-41/64
Base Diameter: 1
Minimum Base Length: .750
Weld Fillet Diameter: 1-3/8
Weld Fillet Height: 3/8
Ferrule Part Number: FER16 FHD
Get a Quote Diameter: 7/8-9
Length: 1-1/2
Base Diameter: 7/8
Minimum Base Length: .650
Weld Fillet Diameter: 1-1/8
Weld Fillet Height: 5/16
Ferrule Part Number: FER14-F
Get a Quote Diameter: 3/4-10
Length: 1-15/64
Base Diameter: 3/4
Minimum Base Length: .500
Weld Fillet Diameter: 1-1/16
Weld Fillet Height: 1/4
Ferrule Part Number: FER12-F
Get a Quote Diameter: 5/8-11
Length: 31/32
Base Diameter: 5/8
Minimum Base Length: .359
Weld Fillet Diameter: 7/8
Weld Fillet Height: 3/16
Ferrule Part Number: FER10 FHD
Get a Quote Diameter: 1/2-13
Length: 13/16
Base Diameter: 1/2
Minimum Base Length: .296
Weld Fillet Diameter: 11/16
Weld Fillet Height: 5/32
Ferrule Part Number: FER08 FHD
Get a Quote Diameter: 7/16-14
Length: 25/32
Base Diameter: 7/16
Minimum Base Length: .281
Weld Fillet Diameter: 19/32
Weld Fillet Height: 9/64
Ferrule Part Number: FER07 FHD
Get a Quote Diameter: 3/8-16
Length: 25/32
Base Diameter: 3/8
Minimum Base Length: .265
Weld Fillet Diameter: 1/2
Weld Fillet Height: 1/8
Ferrule Part Number: FER06 FHD
Get a Quote Diameter: 5/16-18
Length: 25/32
Base Diameter: 5/16
Minimum Base Length: .250
Weld Fillet Diameter: 7/16
Weld Fillet Height: 7/64
Ferrule Part Number: FER05-FHD
Get a Quote Diameter: 1/4-20
Length: 25/32
Base Diameter: 1/4
Minimum Base Length: .187
Weld Fillet Diameter: 23/64
Weld Fillet Height: 7/64
Ferrule Part Number: FER04-FHD
Category:

Description

Tensile Strength: 61,000 psi min.
Yield Strength: 49,000 psi min.
Elongation (% in 2 in.): 17% min.
Elongation (% in 5x dia.):
 14% min.
Reduction of Area: 50% min.
