Description

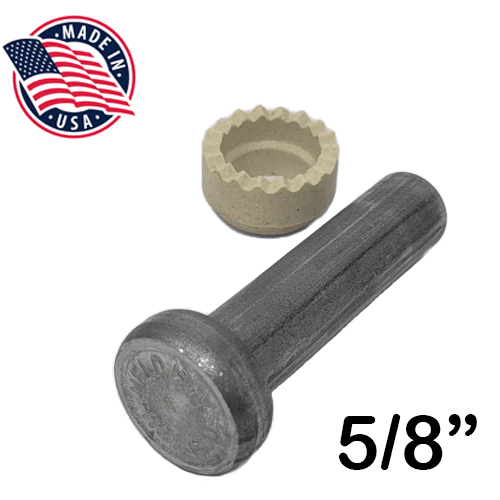

Headed Concrete Anchor Studs (5/8″)
Arc stud welding is a process by which a metal fastener is welded to a parent metal through a fusion weld. Using a “ferrule” to capture and retain the weld’s heat, the molten metal created by the process cools the weld site and produces a weld that is stronger than the stud itself. Drawn arc stud welding can be used with dissimilar metals such as mild and stainless steel, as well as aluminum.
Our Headed Concrete Anchor studs are composed of low-carbon steel. All purchases of headed concrete anchor studs come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts!
To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of arc stud welders.
Have Questions?
For more information on this product, email us at Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!
Available Stock Sizes
Headed Steel Studs MSDS Headed Stainless Steel MSDS Ferrule MSDS
| Mechanical Property Requirements | ||
|---|---|---|
| Type A | Type B | |
| Tensile Strength | 61,000 psi min. | 65,000 psi min |
| Yield Strength | 49,000 psi min | 51,000 psi min |
| Elongation (% in 2 in) | 17% min. | 20% min. |
| Elongation (% in 5x dia.) | 14% min. | 15% min. |
| Reduction of Area | 50% min. | 50% min. |
| Material | Low Carbon Steel (1010-1020) ASTM A29 | |
Type A Studs are general purpose studs Type B Studs are headed, bent, or of other configuration that are used as an essential component in composite beam design | ||
