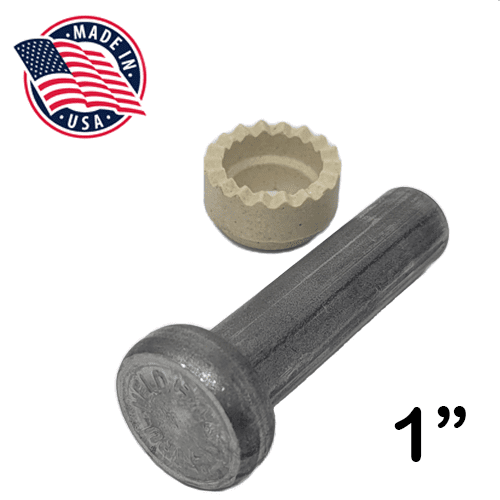

Headed Shear Connector Studs (1 x 4-1/4″)
Our Headed Shear Connector Studs are composed of low-carbon steel (ASTM A29, ASTM A108).
All purchases of headed shear connector studs come with the necessary ferrules required for stud welding. Lets us know what your application is and we will provide the appropriate ferrule.
When Arc Stud Welding with the proper equipment and setup, you obtain a full fusion weld that becomes stronger than the stud itself.
The general purpose of a headed shear connector is to provide a strong mechanical connection between steel and concrete slab. Designed to secure the concrete to the steel beams and resist shear loadings between them. Some advantages of shear connectors over other forms of connectors are:
- Installation and welding process is quick and simple
- Provides little obstruction to the slab reinforcement
- It provides equal shear strength in all directions
The most common size for Welding Through Metal Deck is 3/4” diameter and smaller. Shear connectors hold concrete slabs to steel members to resist shear forces and increase shear loading capacity in steel buildings, bridges, and columns. Embedment anchors on miscellaneous embedded plates, frames, angles, and strip plates.
Structural steel fabrication commonly uses arc studs. A process called arc stud welding allows a metal fastener to be welded to a parent metal through a fusion weld. A “ferrule” captures and retains the weld’s heat. The process creates molten metal that cools the weld site. The weld produced is stronger than the stud itself. Welders can use drawn arc stud welding with dissimilar metals such as mild and stainless steel, as well as aluminum.
Stud Part Number: HSC
AKA Part Numbers: HSC, S-3L, SC, S3L Shear Connectors
Our Headed Shear Connectors meet requirements of the following:
- AWS D1.1 Structural Welding Code – Steel, Type B
- AASHTO/AWS D1.5 Bridge Welding Code, Type B
- AASHTO Standard Specification for Highway Bridges
- ISO-13918 Welding – Studs for Arc Stud Welding
- International Building Code Section 19
- AISC Manual of Steel Construction – Allowable Stress Design
- AISC Manual of Steel Construction – Load & Resistance Factor
- AWS D1.6 Structural Welding Code – Stainless Steel, Type A
