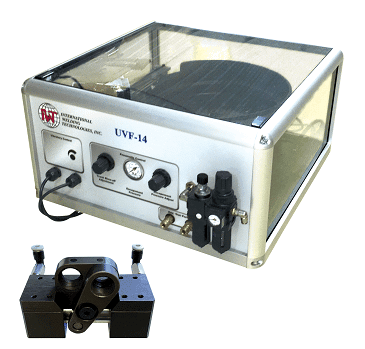

IWT UVF-14 Auto Stud Feeder

Automatic Stud Feeder

Model: IWT-UVF-14

IWT’s UVF-14 universal feeder is designed to work with IWT automatic welding heads or auto feed hand guns. The vibrator bowl is made F ram cast aluminum and coated with urethane for superior wear and noise reduction.

The escapement is precision machined out of tool steel allowing for continuous use with minimal maintenance. Both the bowl and fastener escapement is housed in a safety enclosure with pressure gages and controls conveniently located on the outside.

The bowl is adjustable for fasteners 4-40 through 3/8-16” or M3 through MIO and can be used with mini-flange. DIN flange or micro-flanged weld studs up to 1.125 inches long.

Features:

• Weld Range: #4 – 3/8″
• Power & Air: 110 VAC / 80 PSI
• Feed Rate: Up to 200 studs per minute (depending on fastener size)
• Bowl Size: 14″ Standard (other sizes available)

IWT UVF-14 Spec Sheet
