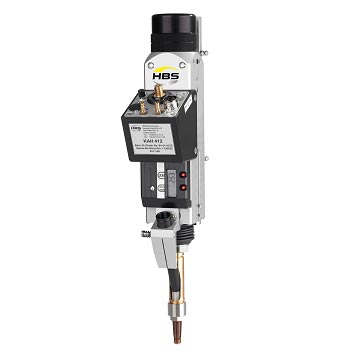

KAH-412 LA Auto Feed Weld Head
KAH-412 Weld Head (Auto Feed) - Image 2
  1. KAH-412 LA Auto Feed Weld Head
  2. KAH-412 Weld Head (Auto Feed) - Image 2

KAH-412 Weld Head (Auto Feed)

Automatic Stud Welding Head with Digital Display for CD or ARC stud welding with automatic stud feeding according to current standards.

Features:

  • Weld Range: #4 – 5/16″
  • Stud Length: .31″ to 1.57″
  • Dimensions: 14.96″ L x 2.60″ W x 5.71″ H
  • Weight: 7.5 lbs.
  • Stud Material: Mild Steel, Stainless Steel, Aluminum and Brass

Additional Features

  • Process variants: contact welding, gap welding, short cycle drawn arc welding, and drawn arc welding
  • Rigid casing made of metal
  • Zero-play ball linear bearing for guiding the welding piston, to ensure maximum precision and reproducibility for welds
  • Integrated lift and spring-loaded adjustment
  • Direct reading for the adjusted plunge and lift dimension
  • Torsion-resistant aluminum-casing to accommodate all function elements (e.g. ball bearing guide) and accessories
  • Sealed welding piston guidance
  • Compact dimensions

See Spec Sheet for full list of additional features!

KAH 412 Spec Sheet

Category:

Description

KAH-412 Weld Head

The KAH-412 Weld Head is a top-of-the-line auto feed welder used in conjunction with other auto feed devices and accessories!

Features:

  • Weld Range: #4 – 5/16″
  • Stud Length: .31″ to 1.57″
  • Dimensions: 14.96″ L x 2.60″ W x 5.71″ H
  • Weight: 7.5 lbs.
  • Stud Material: Mild Steel, Stainless Steel, Aluminum and Brass

Additional Features

  • Process variants: contact welding, gap welding, short cycle drawn arc welding, and drawn arc welding
  • Rigid casing made of metal
  • Zero-play ball linear bearing for guiding the welding piston, to ensure maximum precision and reproducibility for welds
  • Integrated lift and spring-loaded adjustment
  • Direct reading for the adjusted plunge and lift dimension
  • Torsion-resistant aluminum-casing to accommodate all function elements (e.g. ball bearing guide) and accessories
  • Sealed welding piston guidance
  • Compact dimensions

See Spec Sheet for full list of additional features!
