Description
Mini Cupped Head Weld Pins

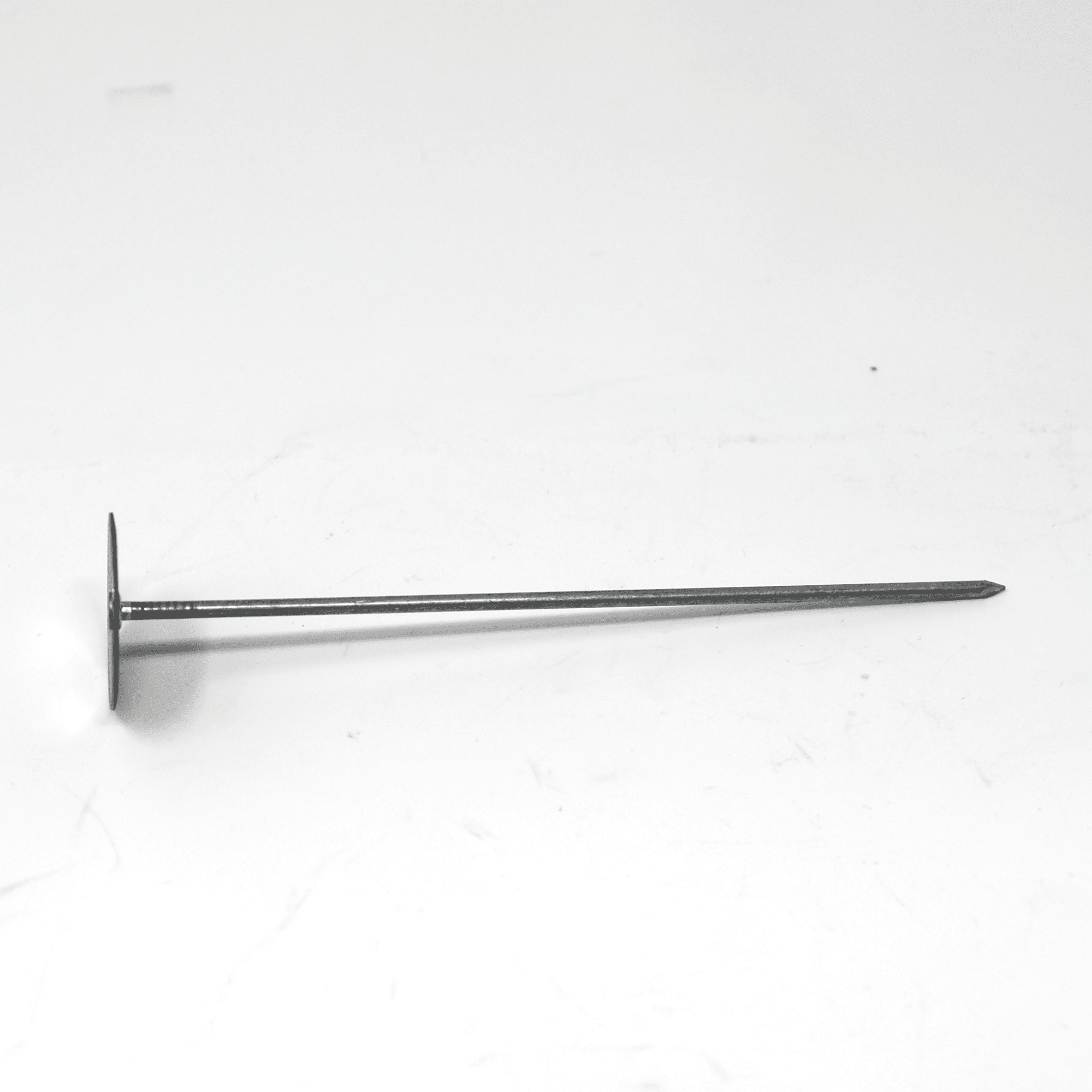

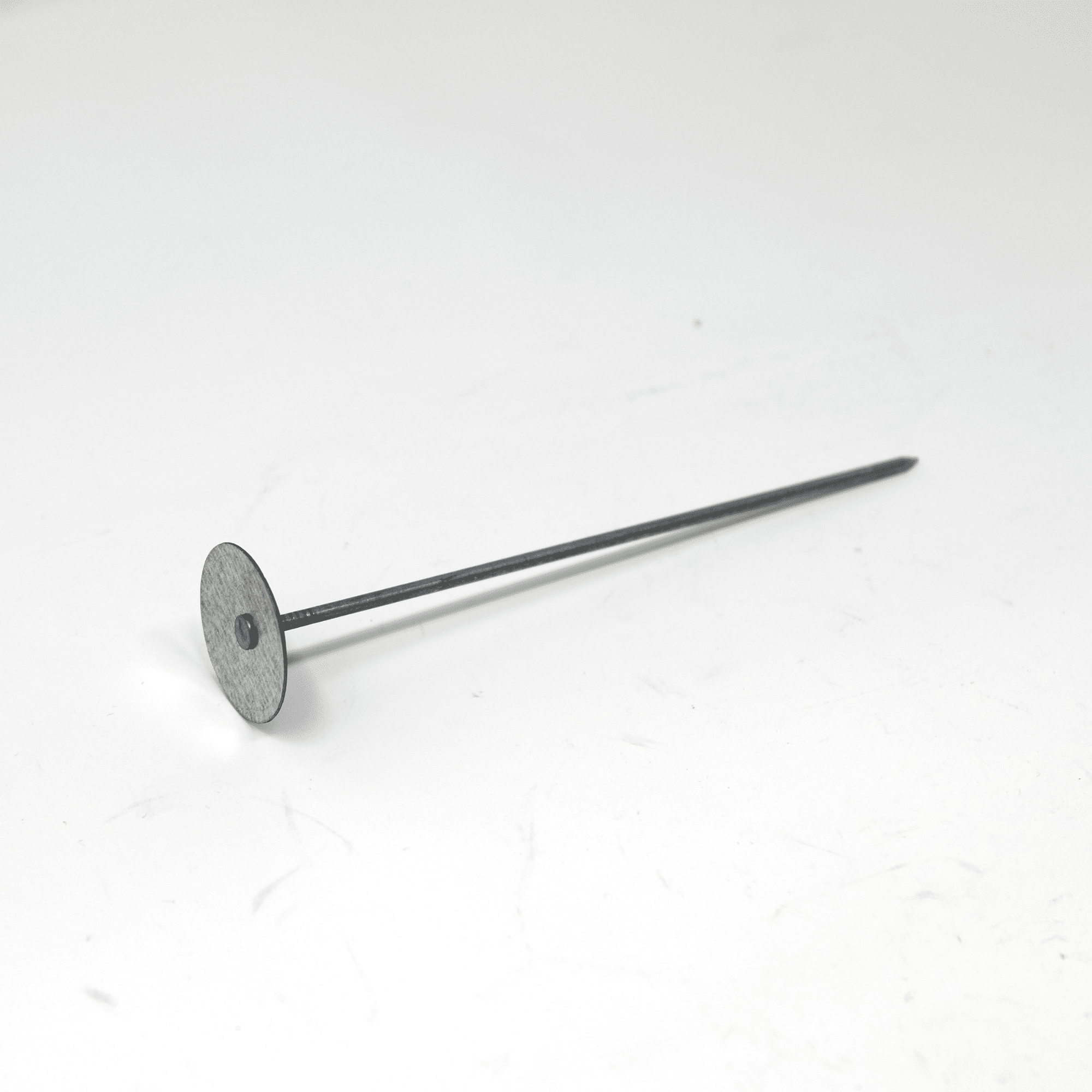

The Mini Cupped Head Weld Pins a mild steel fabricated part made up of a weld pin and a stacked on speed clip, or retaining washer. The head diameter is 1-3/16″.
Generally applied with a capacitor discharge (CD) welder. The normal/standard material is galvanized steel (both head and plate).

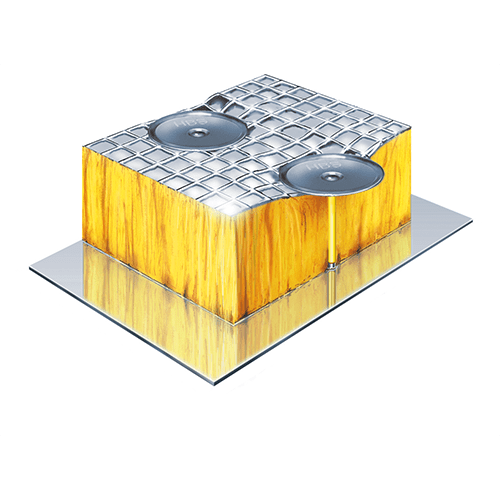

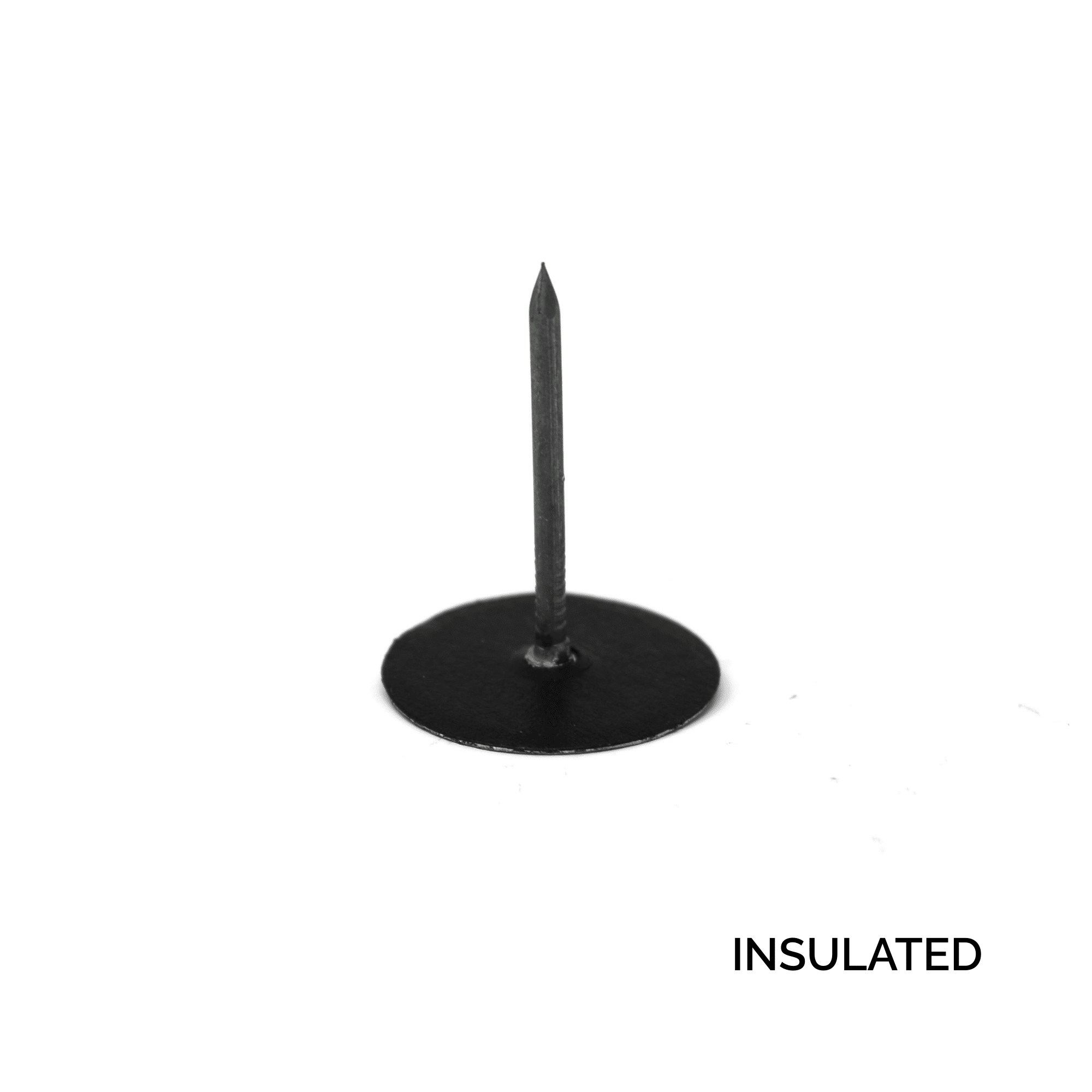

Pins are also available “insulated” for welding through foil-faced materials. Prevents arcing on the foil facia.

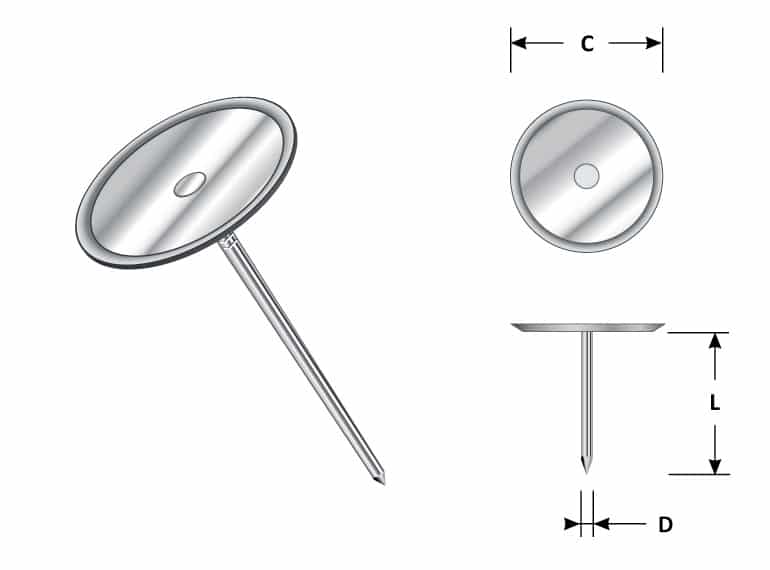

| PART NO. | D | C | LENGTH |
|---|---|---|---|
| MC-14 | .080 | 1-3/16" | AS REQUIRED |
| MC-12 | .106 | 1-3/16" | AS REQUIRED |
Not What You’re Looking For?
To view our full selection of insulation pins, click here. Additionally, see our full selection of studs here, as well as our full line of equipment options here.
Have Questions?
For more information on this product, call our office at 800-252-1919 or email us at Info@studweldprod.com and we will get back to you shortly!
