Non-Flanged Capacitor Discharge Studs (Aluminum)

From $35.20

Print CD Non-Flanged PDF

Click below for other materials:
Mild Steel (MS)
Stainless Steel (SS)

The following prices are for: Aluminum (AL)

Description

TDFDEE (ALUMINUM)LENGTH TOLERANCE
4 40.111.035.050/.040.015-0.005
6 32.137.035.050/.040.015-0.005
8 32.163.035.050/.040.015-0.005
10 24.189.040.050/.040.015-0.005
10 32.189.040.050/.040.015-0.005
14 20.249.045.050/.040.015-0.005
516 18.311.050//////.015-0.005
38 16.374.065//////.015-0.005

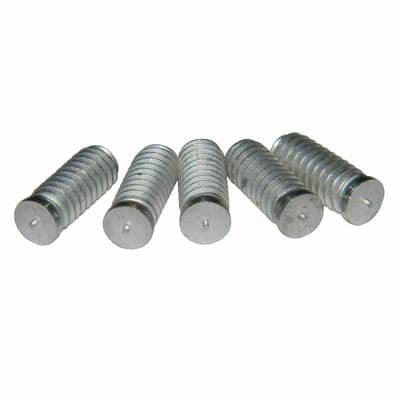

Aluminum Non-Flanged Capacitor Discharge (CD) Studs

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. However, with CD welding small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy which is instantaneously discharged by the equipment system through a special weld “timing” tip. Since the entire weld cycle is completed in several milliseconds, welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding permits stud welding of dissimilar metals.

These Aluminum Non-Flanged CD Studs are affordable, high quality metal fasteners perfect for CD welding needs. These Non-Flanged CD Studs come in various dimensions, making these one of the most versatile studs on the market. Guaranteed to work flawlessly with any capacitive discharge welder we offer!

Material: Aluminum

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of capacitive discharge stud welders.

Have Questions?

For more information on this product, email us Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!
