non flanged ss stainless steel

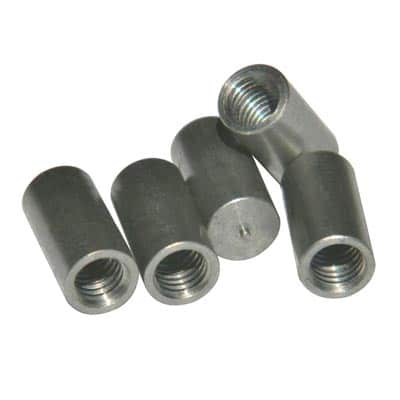

Non Flanged SS CD Tap Pad ¼ x 5/8 Tap 8-32 x .480

$0.24

Non Flanged Stainless Steel CD Tap Pad Stud

  • Tap Pad 1/4 x 5/8
  • Tap 8-32 x .480
SKU: TPSSNFL 14 58 832 Category:

Description

Non Flanged SS CD

  • Tap Pad ¼ x 5/8
  • Tap 8-32 x .480

Arc Stud Welding vs CD Stud Welding

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. Small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy. The equipment system instantaneously discharges through a special weld “timing” tip. The entire weld cycle completes in several milliseconds. Welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding can use dissimilar metals.

Process that allows a metal fastener to be welded to a parent metal through a fusion weld, also known as Arc Stud Welding. A “ferrule” captures and retains the weld’s heat. The process creates molten metal that cools the weld site. The weld produced is stronger than the stud itself. Arc stud welding can use dissimilar metals such as mild and stainless steel, as well as aluminum.

Not What You’re Looking For?

View all of our excess inventory here. Additionally, see our full selection of studs here, as well as our full line of equipment options here.
