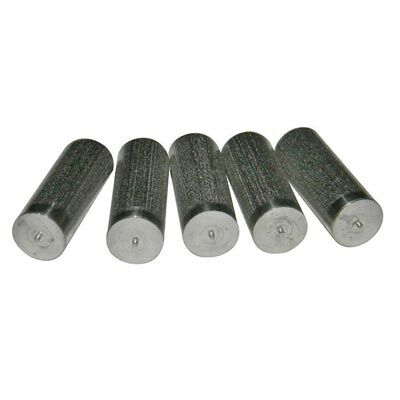

Non-Flanged Weld Pin (No Thread)
Non-Flanged Weld Pin (No Thread) - Image 2

Non-Flanged Weld Pin (No Thread)

Print CD Non-Flanged Weld Pin PDF

DLength Tolerance
1/80.015/-0.005
3/160.015/-0.005
1/40.015/-0.005
5/160.015/-0.005
3/80.015/-0.005

HOW TO ORDER:
Specify base diameter, before weld (BW) length, type of material.

Example: 3/8 x 1-1/2” (BW) No Thread (NT), stainless steel

Category:

Description

Length1/83/161/45/163/8
1/4NFL-- 18 14NFL-- 316 14NFL-- 14 14NFL-- 516 14NFL-- 38 14
3/8NFL-- 18 38NFL-- 316 38NFL-- 14 38NFL-- 516 38NFL-- 38 38
1/2NFL-- 18 12NFL-- 316 12NFL-- 14 12NFL-- 516 12NFL-- 38 12
5/8NFL-- 18 58NFL-- 316 58NFL-- 14 58NFL-- 516 58NFL-- 38 58
3/4NFL-- 18 34NFL-- 316 34NFL-- 14 34NFL-- 516 34NFL-- 38 34
7/8NFL-- 18 78NFL-- 316 78NFL-- 14 78NFL-- 516 78NFL-- 38 78
1NFL-- 18 1NFL-- 316 1NFL-- 14 1NFL-- 516 1NFL-- 38 1
1 1/4NFL-- 18 114NFL-- 316 114NFL-- 14 114NFL-- 516 114NFL-- 38 114
1 1/2NFL-- 18 112NFL-- 316 112NFL-- 14 112NFL-- 516 112NFL-- 38 112
1 3/4NFL-- 18 134NFL-- 316 134NFL-- 14 134NFL-- 516 134NFL-- 38 134
2NFL-- 18 2NFL-- 316 2NFL-- 14 2NFL-- 516 2NFL-- 38 2
2 1/4NFL-- 18 214NFL-- 316 214NFL-- 14 214NFL-- 516 214NFL-- 38 214
2 1/2NFL-- 18 212NFL-- 316 212NFL-- 14 212NFL-- 516 212NFL-- 38 212
3NFL-- 18 3NFL-- 316 3NFL-- 14 3NFL-- 516 3NFL-- 38 3

Non-Flanged Weld Pin (No Thread)

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. However, with CD welding small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy which is instantaneously discharged by the equipment system through a special weld “timing” tip. Since the entire weld cycle is completed in several milliseconds, welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding permits stud welding of dissimilar metals.

Non-Flanged Weld Pin is an affordable, high quality metal fastener perfect for CD welding needs. These Non-Flanged CD Studs come in various dimensions, making these one of the most versatile studs on the market. Guaranteed to work flawlessly with any capacitive discharge welder we offer!

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of capacitive discharge stud welders.

Material: Mild Steel (MS), Stainless Steel (SS) and Aluminum (AL)

Plating: All mild steel studs are copper plating (nickel plating upon request)

Annealing: all studs are annealed where required.
