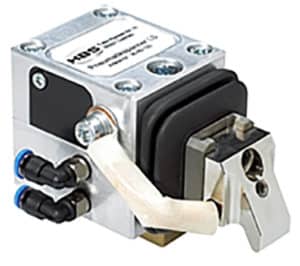

Pneumatic Clamp PMB-LS2

Pneumatic work piece clamps PMB-LS2 guarantees fast and accurate clamping of the work. The patented horizontal and vertical movement of clamp fingers allow work piece loading from top or front. Integrated ground connection to the clamp. Forward- and clamp- movement through curved sector control. Bellows are protecting the motor apparatus of fouling.

Features

  • Clamping Movement: Double action air cylinder through curved sector control
  • Horizontal Clamping Way: 0.30″
  • Vertical Clamping Way: 0.16″ (4mm)
  • Max. Thickness of Workpiece: Through elevation adjustment of clamp up to 0.39″ (20mm)
  • Width of Clamp: 0.59″ (15mm)
  • Air Pressure Connections: Up to 6 bar
  • Dimensions: 3.54″ L x 1.97″ W x 1.97″ H
  • Weight: 1.01 lbs.

PMB-LS2 Spec Sheet

Description

Pneumatic Clamp PMB-LS2

The Pneumatic Clamp PMB-LS2 guarantees fast and accurate clamping of the work. The patented horizontal and vertical movement of clamp fingers allow work piece loading from top or front. Integrated ground connection to the clamp. Forward- and clamp- movement through curved sector control. Bellows are protecting the motor apparatus of fouling.

Features

  • Clamping Movement: Double action air cylinder through curved sector control
  • Horizontal Clamping Way: 0.30″
  • Vertical Clamping Way: 0.16″ (4mm)
  • Max. Thickness of Workpiece: Through elevation adjustment of clamp up to 0.39″ (20mm)
  • Width of Clamp: 0.59″ (15mm)
  • Air Pressure Connections: Up to 6 bar
  • Dimensions: 3.54″ L x 1.97″ W x 1.97″ H
  • Weight: 1.01 lbs.
