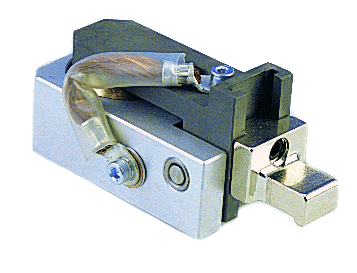

Pneumatic Clamp PMB-S

Pneumatic Clamp PMB-S

Pneumatic clamp PMB-S with vertical movement. Ground connection to the clamp with in and output of the work piece only from the front side.

Features

  • Clamping Movement: Single action air cylinder
  • Vertical Clamping Way: 0.16″ (4mm)
  • Max Thickness of Workpiece: Through elevation adjustment of clamp up to 0.79″ (20mm)
  • Width of Clamp: 0.59″ (15mm)
  • Air Pressure Connections: Up to 6 bar
  • Dimensions: 3.86″ L x 1.77″ W x 1.65″ H
  • Weight: 1.01 lbs.

PMB-S Spec Sheet

Category:

Description

Pneumatic Clamp PMB-S

Pneumatic clamp PMB-S with vertical movement. Ground connection to the clamp with in and output of the work piece only from the front side.

Features

  • Clamping Movement: Single action air cylinder
  • Vertical Clamping Way: 0.16″ (4mm)
  • Max Thickness of Workpiece: Through elevation adjustment of clamp up to 0.79″ (20mm)
  • Width of Clamp: 0.59″ (15mm)
  • Air Pressure Connections: Up to 6 bar
  • Dimensions: 3.86″ L x 1.77″ W x 1.65″ H
  • Weight: 1.01 lbs.
