Description
Powerbase Weld Pins
Powerbase Weld Pins are a specialty type of Capacitor Discharge (CD) pin. This pin can be welded through mill scale, rusted or painted surfaces, without having to grind/clean the base metal. After the pin is welded to the surface, a self-locking washer is installed to secure the insulation.

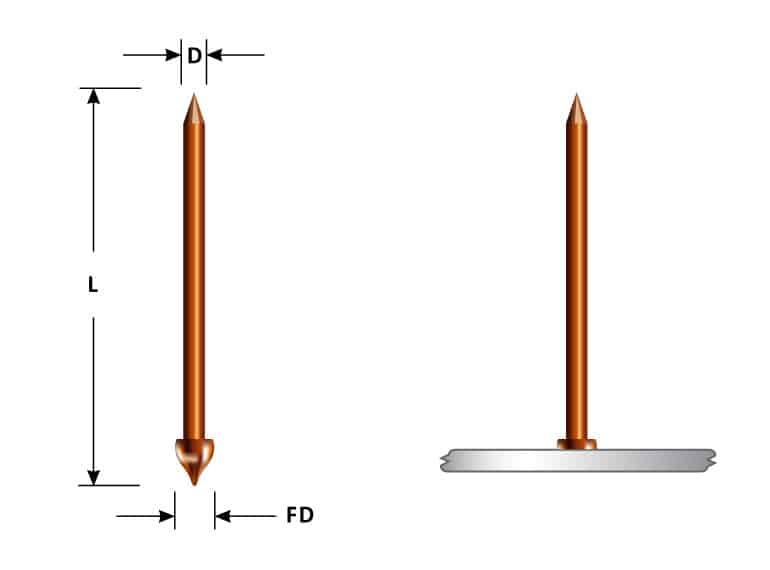

| D | F | LENGTH |
|---|---|---|
| 12 GA .106 | .165 | AS REQUIRED |
| 10 GA. .135 | .188 | AS REQUIRED |
Capacitor Discharge (CD) Stud Welding
Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. Small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy. The equipment system instantaneously discharges through a special weld “timing” tip. The entire weld cycle completes in several milliseconds. Welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding can use dissimilar metals.
Not What You’re Looking For?
To view more of our insulation pins click here.
Have Questions?
For more information on this product, call our office at 800-252-1919 or email us at Info@studweldprod.com and we will get back to you shortly!
Follow Us on Social Media!
Your #1 Stud! on Instagram and Facebook. Also, check out our YouTube channel here.
Reviews
There are no reviews yet.
