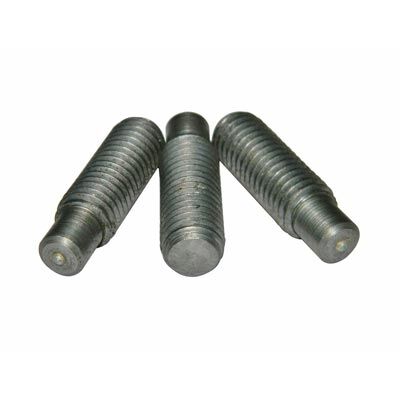

Reduced Base Studs

Print-Reduced-Base-PDF

RB Studs are used in all types of applications. They can be welded to a flat surface, or to the inside or outside of an angle.

Length: Length is listed before weld. Studs diameters 1/2” and below will be approx. 1/8” shorter after welding. 5/8” will be approx. 3/16” shorter after welding. Stud Welding Products RB Studs can be made in any length above the standard minimum.

Material: Low carbon steel, ASTM A29, 1010 1020. RB studs are also available in weldable stainless steel. Type 302 is the most commonly used. Other grades of stainless steel (except Type 303) are available when required.

Qty Part # Show/Hide All Details
Get a Quote Diameter: 3/8-16
Length: 3/4
Base Diameter: .310
Minimum Base Length: 3/8
Weld Fillet Diameter: 7/16
Weld Fillet Height: 7/64
Ferrule Part Number: FER06 R
Get a Quote Diameter: 7/16-14
Length: 3/4
Base Diameter: .373
Minimum Base Length: 3/8
Weld Fillet Diameter: 1/2
Weld Fillet Height: 1/8
Ferrule Part Number: FER06 R
Get a Quote Diameter: 1/2-13
Length: 7/8
Base Diameter: .435
Minimum Base Length: 7/16
Weld Fillet Diameter: 19/32
Weld Fillet Height: 9/64
Ferrule Part Number: FER06 R
Get a Quote Diameter: 3/4-10
Length: 1-3/16
Base Diameter: .625
Minimum Base Length: 5/8
Weld Fillet Diameter: 7/8
Weld Fillet Height: 3/16
Ferrule Part Number: FER06 R
Get a Quote Diameter: 7/8-9
Length: 1-1/2
Base Diameter: .750
Minimum Base Length: 1
Weld Fillet Diameter: 1-1/16
Weld Fillet Height: 1/4
Ferrule Part Number: FER06 R
Get a Quote Diameter: 1-8
Length: 2
Base Diameter: .875
Minimum Base Length: 1
Weld Fillet Diameter: 1-1/8
Weld Fillet Height: 5/16
Ferrule Part Number: FER06 R
Category:

Description

Tensile Strength: 61,000 psi min.
Yield Strength: 49,000 psi min.
Elongation (% in 2 in.): 17% min.
Elongation (% in 5x dia.):
 14% min.
Reduction of Area: 50% min.
