Shoulder Studs

Print Shoulder Stud PDF

DTBL
1/4-203/83/83/7
5/16-187/167/167/8
3/8-161/21/21
1/2-1311/165/81-1/4
5/8-1111/163/41-9/16
3/4-1013/167/81-7/8
7/8-913/161/41-7/8

Material: Low carbon steel, ASTM A 108 1010-1020. Stainless steel 18-8.

Sizes below are MINIMUM length requirements

SS 78 1316
SS 3410 1316
SS 5811 1116
SS 1213 1116
SS 3816 12
SS 51618 716
SS 1420 38



Category:

Description

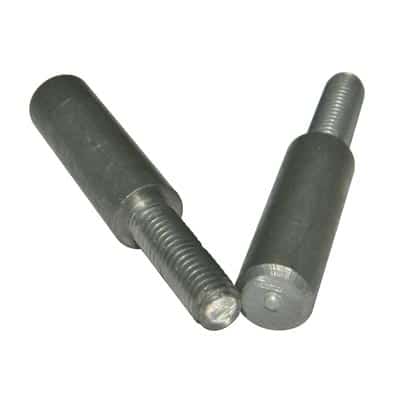

Shoulder Studs are used where additional shear strength is required at the weld.

Arc stud welding is a process by which a metal fastener is welded to a parent metal through a fusion weld. Using a “ferrule” to capture and retain the weld’s heat, the molten metal created by the process cools and the weld site and produces a weld that is stronger than the stud itself. Drawn arc stud welding can weld dissimilar metals such as mild and stainless steel, as well as aluminum.

Our Shoulder studs are composed of low-carbon steel or stainless steel. All purchases of Shoulder studs come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts!

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of arc stud welders.

Have Questions?

For more information on this product, email us at Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!

Low Carbon Mechanical Property Requirements Stainless Steel
Tensile Strength61,000 psi min. Material: Stainless Steel
AISI grade - 302/304/316.
Other grades available upon request.
Mechanical Properties: Values for various grades available upon request.
Yield Strength49,000 psi min.
Elongation (% in 2 in.)17% min.
Elongation (% in 5x dia.)14% min.
Reduction of Area50% min.

How To Order
Specify diameter, thread size before weld (BW) length, type of material.
Ex: 1/2-13 x 1-1/8” (BW) partial thread (PT), mild steel

When ordering Stainless Steel, SS will be added to the part number.
Ex: Partial Thread Stainless Steel 1/4-20×1”= PCPSS 1420 1

Diameters 9/16” and below will be 1/8” shorter AFTER weld
Diameters “ 5/8 – 7/8” will be 3/16” shorter AFTER weld
Diameters 1- 1 1/4” will be 1/4” shorter AFTER weld
