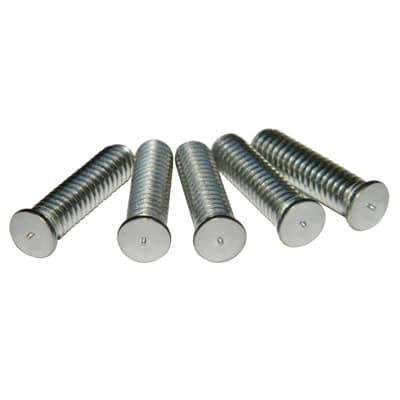

Stainless Steel Flanged Capacitor Discharge Studs
These Stainless Steel Flanged Capacitor Discharge Studs are affordable, high quality metal fasteners perfect for CD welding needs. These Flanged CD Studs come in various dimensions, making these one of the most versatile studs on the market. Guaranteed to work flawlessly with any capacitive discharge welder we offer!
Material: Mild Steel
- ASTM A555-05
- ASTM A493-16
- AMS- QQS-763 Rev D
- UNS-S30433
| TD | FD | E (MS & SS) | E (ALUMINUM) | LENGTH TOLERANCE |
|---|---|---|---|---|
| 4 40 | .197/.177 | .040/.030 | .050/.040 | .015-0.005 |
| 6 32 | .228/.208 | .040/.030 | .050/.040 | .015-0.005 |
| 8 32 | .260/.240 | .040/.030 | .050/.040 | .015-0.005 |
| 10 24 | .260/.240 | .045/.035 | .050/.040 | .015-0.005 |
| 10 32 | .260/.240 | .045/.035 | .050/.040 | .015-0.005 |
| 14 20 | .322/.302 | .050/.040 | .050/.040 | .015-0.005 |
| 516 18 | .380 | .050/.040 | ////// | .015-0.005 |
| 38 16 | .437 | .065 | ////// | .015-0.005 |
Not What You’re Looking For?
Find our other materials available:
Mild Steel-Copper Flashed (MS)
Aluminum (AL)
To view our full selection of capacitor discharge studs and arc studs, click here. Also, click here to view our selection of capacitive discharge stud welders.
Have Questions?
For more information on this product, call our office at 800-252-1919 or email us at Info@studweldprod.com and we will get back to you shortly!
