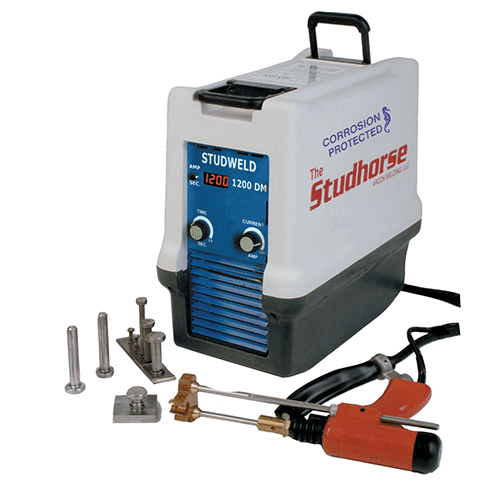

Studweld Studhorse 1200 DM Stud Welder

Studweld Studhorse 1200DM Arc Stud Welder (5/8″ Max Stud Dia.)

The Studhorse 1200DM is designed for use in harsh environments including construction, shipbuilding, boiler manufacturing and equipment fabrication.

Designed for 1200A using 50 ft. 2/0 cable or 75 ft. of 4/0 cable.

The Studhorse 1200 can easily be moved with the operator as the welding job progresses and connects with a 4-conductor, 10-gauge power cord to either a utility grid or a power generator. With The Studhorse 1200 kept close to the welder, only a short welding cable is needed.

The weight of the Studhorse will drastically increase operator efficiency. Additionally, the 50% weight reduction in the machine and the 70% lighter power cord make stud welding significantly more economical.

Because of its weight, the Studhorse allows easy loading by hand on and off any vehicle!

Studhorse 1200DM Spec Sheet   Warranty

  • Weld Range: #4 TO 1/2" DIA. 14 GA TO 3/8" (M3 TO MR12, DIA. 2 TO 10 MM)
  • Welding Material: Mild Steel, Stainless Steel
  • Welding Rate: 7 to 17 studs/minute
  • Welding Time: 5 to 1000 MSEC
SKU: EQ STUDHORSE 1200 Category:

Description



Studweld Studhorse 1200DM Arc Stud Welder (5/8″ Max Stud Dia.)



The Studweld Studhorse 1200DM Arc Stud Welder is perfectly designed for stud welding in harsh environments, making this system one of the most versatile on the market!

  • Stud Diameter Welding Range: 1/4″ – 5/8″
  • Portability: Weighing 90lbs, the Studhorse 1200 DM is extremely portable for mid-size arc stud welders
  • Efficiency: 4 studs per minute duty cycle at 1200 Amps (5/8″)
  • Power: Drawn Arc Stud Welding up to 1200 Amps
  • Digital Start/Stop replaces mechanical contractor
Detailed Specifications:



The Studhorse 1200DM uses a power supply that is based on inverter technology. The machine weighs only 90 lbs. (36.5 Kg), with physical dimensions of only 19.5″ long x 17.9″ high x 10.5″ wide (495 mm x 455 mm x 105 mm). Generating an output of 1200 Amps, the welder is capable of welding studs up to 5/8 in. weld base diameter.

Additionally, the unit can be powered from a 40 Amp utility breaker at 480V, 3-phase or from a 30 Amp time delay fuse. Also, the welder features infinitely adjustable output current, up to its 1200 amp. max. Allows for a wide range of stud sizes.

Note: the 240V model requires a 60 amp breaker or slow-blow fuse and a 200 amp supply circuit for maximum output. Many competing 1200A arc stud welders on the market today are still using the conventional linear power design technology, with a typical weight of almost 200 lbs. (90 kg).
