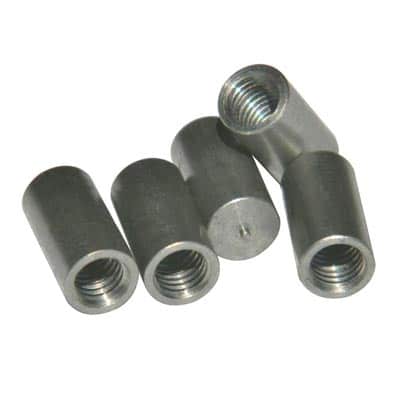

Tapped Pad Non-Flanged CD Studs
These Tapped Pad Non-Flanged CD Studs are affordable, high quality metal fasteners perfect for CD welding needs. These Non-Flanged CD Studs come in various dimensions, making these one of the most versatile studs on the market. Guaranteed to work flawlessly with any capacitive discharge welder we offer!
Taps: Standard tap is UNC-2B, other taps are available.
Material: Low Carbon Steel, Stainless Steel and Aluminum
Mechanical Properties: Tensile (60,000) psi (min.) Yeild (50,000) psi (min.) Elongation 20% (in 2 inches)
Plating: Plating is not standard. Copper, nickel, and zine available upon customer request
*Maximum standard tap depth equals 1-1/2 times tap diameter.
| A | B (MIN) | C (MAX) | D (MIN) |
|---|---|---|---|
| 3/16 | 3/8 | 6/32 | 1/4 |
| 1/4 | 3/8 | 8-32 | 1/4 |
| 5/16 | 3/8 | 10-32 | 14 |
| 3/8 | 3/8 | 1/4-20 | 1/4 |
