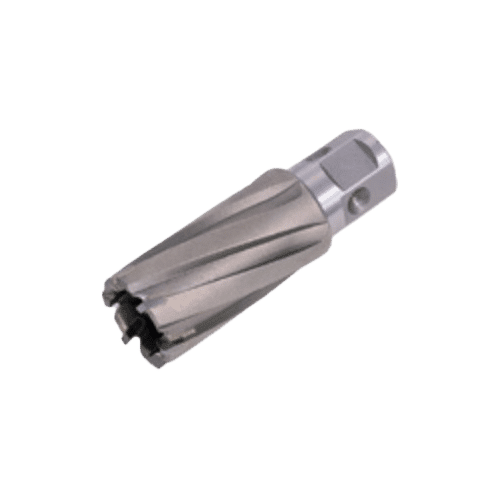

Tungsten Carbide Tip Cutters (Metric) 3/4" Shank

Tungsten Carbide Tip Cutters (Metric) 3/4″ Shank

From $67.00

Jetbroach Cutter Features

  • Carbide tips for faster cutting
  • Single pass cutting, no pilot hole required
  • Annular part does all the work so small cutting resistance reduces drilling time
  • Cutting of slanted, elongated and edge holes is now possible
  • Fractional and metric cutter sizes to suit wide range of applications
  • Produces little slag and few chips for easy disposal
  • Can also be fitted to and used with previous Atra Ace models using a hexagon socket set-screw
  • Improved concentricity extends cutter life! One-touch system consisting of three balls inside the arbor body produces a self-centering effect during cutting to improve cutter performance and life
SKU: tk00301 Category:

Description

Tungsten Carbide Tip Cutters (Metric) 3/4″ Shank

Tungsten Carbide Tip Cutters, known for their durability and precision are used for cutting and shaping a wide range of hard materials.

Features

  • Carbide tips for faster cutting
  • Annular part does all the work so small cutting resistance reduces drilling time
  • Fractional and metric cutter sizes to suit wide range of applications
  • Can also be fitted to and used with previous Atra Ace models using a hexagon socket set-screw

Not What You’re Looking For?

Find our selection of cutters here. As well as our full selection of automatic drilling machines here.

Test Drilling is very often the only way to determine the machinability of difficult materials. Use a small size cutter wherever possible in order to minimize trial costs.

A guide to the selection of circumferential cutting speeds:

 feet/min
m/min
 Stainless Steel
 65 - 131
20-40
 Mild Steel
 98 - 164
 30-50
 Cast Iron
 98 - 164
 30-50
 Brass

 164 - 229
 50-70
 Aluminum
 229 - 295
 70-90
