Non-Flanged Capacitor Discharge Studs (Stainless Steel)

Description

TD	FD	E	E (ALUMINUM)	LENGTH TOLERANCE
4 40	.111	.035	.050/.040	.015-0.005
6 32	.137	.035	.050/.040	.015-0.005
8 32	.163	.035	.050/.040	.015-0.005
10 24	.189	.040	.050/.040	.015-0.005
10 32	.189	.040	.050/.040	.015-0.005
14 20	.249	.045	.050/.040	.015-0.005
516 18	.311	.050	//////	.015-0.005
38 16	.374	.065	//////	.015-0.005

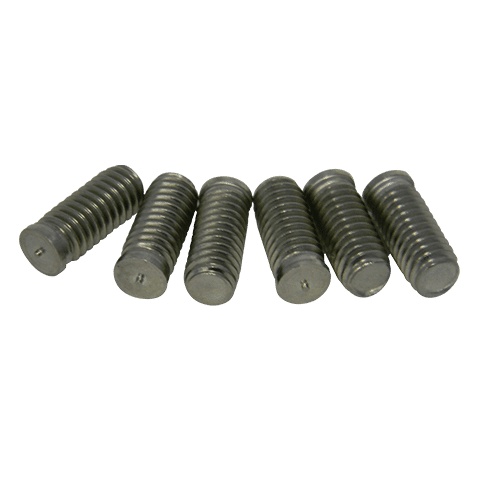

Stainless Steel Non-Flanged Capacitor Discharge (CD) Studs

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. However, with CD welding small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy which is instantaneously discharged by the equipment system through a special weld “timing” tip. Since the entire weld cycle is completed in several milliseconds, welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding permits stud welding of dissimilar metals.

These Stainless Steel Non-Flanged CD Studs are affordable, high quality metal fasteners perfect for CD welding needs. These Non-Flanged CD Studs come in various dimensions, making these one of the most versatile studs on the market. Guaranteed to work flawlessly with any capacitive discharge welder we offer!

Material: Stainless Steel

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of capacitive discharge stud welders.
